Some Example of Wye Delta


EXAMPLE PROBLEM OF WYE TO DELTA TRANSFORMATION

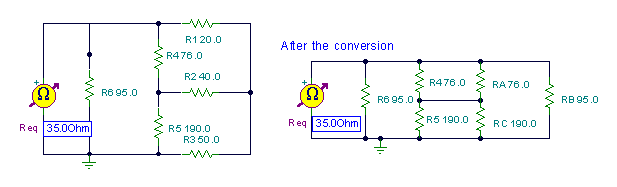

Find the resistance shown by the meter !

<center>Click/tap the circuit above to analyze on-line or click this link to Save under Windows</center>



Let's convert the R1, R2, R3 wye network to a delta network. This conversion is the best choice for simplifying this network.

First, we do the Wye to delta conversion, then we notice the instances of paralleled resistors in the simplified circuit.
{Wye to delta conversion for R1, R2, R3 }

Gy: = 1/R1+1/R2+1/R3;
Gy = [95m]
RA =R1*R2*Gy;
RB =R1*R3*Gy;
RC=R2*R3*Gy;

Req:=Re-plus (Re-plus(R6,RB), (Re-plus(R4,RA)+Re-plus(R5,RC)));
RA=[76]
RB=[95]
RC=[190]
Req=[35]



EXAMPLE PROBLEM OF DELTA TO WYE TRANSFORMATION


Here we go through an example that utilizes a delta to wye transformation, along with series and parallel resistance equations.Delta & Wye Transformation Problem
